| Driveline |
| Chain - Part #DL0001 10ft long, #50 drive chain, 5/8" pitch (fits all standard Badland Buggy sprockets) |
| Chain Master Link - Part #DL0002 master link for connecting chain ends (fits all standard Badland Buggy sprockets) |

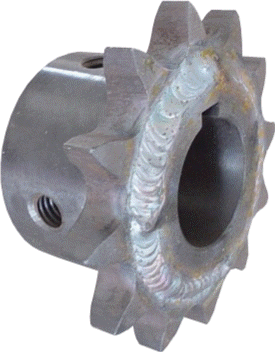

| Layshaft Sprocket & Hub - Part #DL0003 12 tooth sprocket TIG welded to a 1" i.d. bore hub c/w 1/4" keyway & 2 set screws (fits #50 5/8" pitch drive chain) |
| Drive Sprocket & Hub - Part #DL0004 60 tooth sprocket TIG welded to a 1" i.d. bore hub c/w 1/4" keyway & 2 set screws (fits #50 5/8" pitch drive chain) |
| Wheel Hub Bearing - Part #DL0005 sealed bearing for rear hub carriers (fits ST2 & Sabretooth) |
| Bearing & Plate Flange - Part #DL0006 main driveshaft bearing & mounting plate flanges (fits ST2 & Sabretooth) |

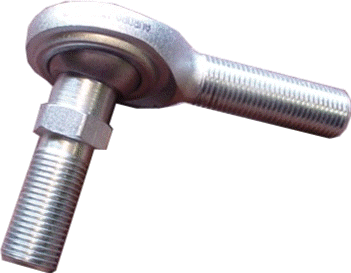

| Male Stud Tie Rod End - Part #DL0007 front suspension spindle tie rod (fits ST2 only) |

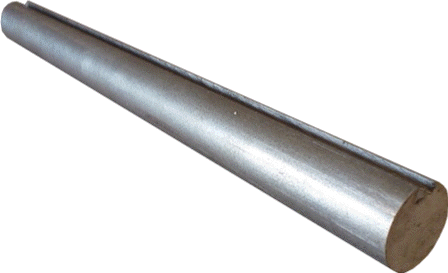

| Driveshaft - Part #DL0008 grade C1018 1" dia x 36" long c/w 1/4" keyway (fits ST2 only) |
| Driveshaft - Part #DL0009 grade 4140 1-1/4" dia x 50" long c/w 1/4" keyway (fits VelociRaptor only) |

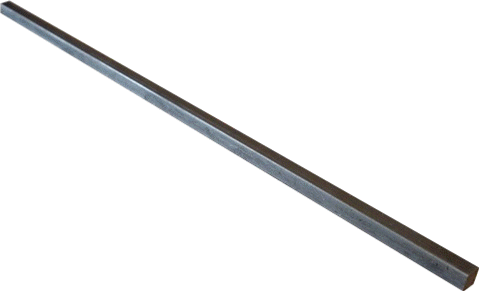

| Keystock - Part #DL0010 1/4" keystock x 12" long (fits ST2, Sabretooth & VelociRaptor) |

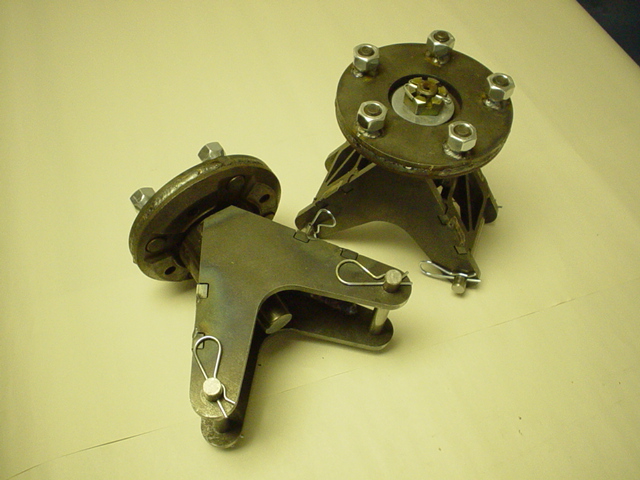

| Rear Hub Carriers - Part #DL0011 Sold per pair only. Laser cut housing TIG welded, professionally machined c/w two sealed bearings, splined stub axles, castle nut, washer & cotter pin. Incl. suspension pivot bars c/w hairpin fasteners. Ready to bolt-on. (fits ST2 only) |
| $29.99 each |
 |
 |
 |
 |
 |
 |
| Photo Coming Soon! |
| Photo Coming Soon! |
| Photo Coming Soon! |
| $2.99 pair |
| $29.99 each |
| $22.99 each |
| $29.99 each |
| $39.99 each |
| $4.99 each |
 |
|
| $749.99 pair |

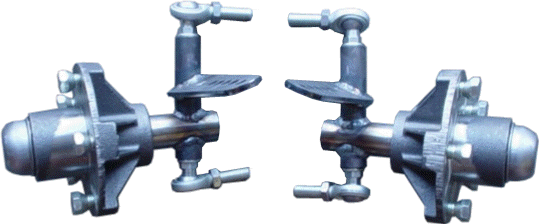

| Front Spindles & Hubs - Part #DL0012 Sold per pair only. Machined stub axle c/w tie rod mount TIG welded to vertical spindle. Incl. wheel hubs with 5 lugs on 4-1/2" dia. bolt pattern. Replacable tapered roller bearings, grease fitting, dust cap, male stud tie rod ends & jam nuts. Ready to bolt-on. (fits ST2 only) |
| $499.99 pair |
 |
| $79.99 each |
| $12.99 each |
| Price Coming Soon! |
| Driveshaft U-Joint - Part #DL0013 Agricultural grade u-joint c/w grease nipple, keyway & threaded holes for set screws (set screws incl.) (fits ST2 & Sabretooth) |
| $41.99 each |

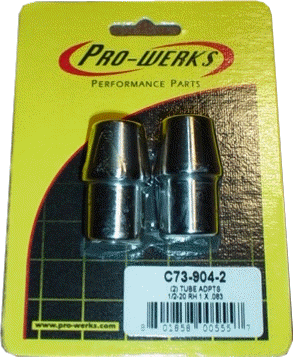

| Tube Adapters - Part #DL0014 1/2" UNF thread to fit front a-arms. Fits 0.850" i.d. steel tube/pipe. (fits ST2 only) |
| $25.99 pair |
| Weld-on Shaft Hub - Part #DL0017 1" i.d. weldable heavy duty shaft hub c/w 2 set screws, keyway & grooved step. For use with Rotor Mounting Plate #PL0021 & Drive Sprocket (fits ST2, Sabretooth or VelociRaptor) |
| $9.99 each |
 |
| All prices are in Canadian dollars. Shipping extra on all parts. Contact us for pricing on shipping. Canadian residents add 7% GST. Order now by telephone or fax! |
 |
| Sprocket Kit - Part #DLK001 49 tooth motorcycle sprocket fits 520 o-ring motorcycle chain (chain not incl.). Includes laser cut mounting plate + weld-on hub + bolts, fully welded & ready to bolt on a 1" dia keyed shaft. (ST2, Sabretooth & Velociraptor) |
| $139.99 each |
 |
