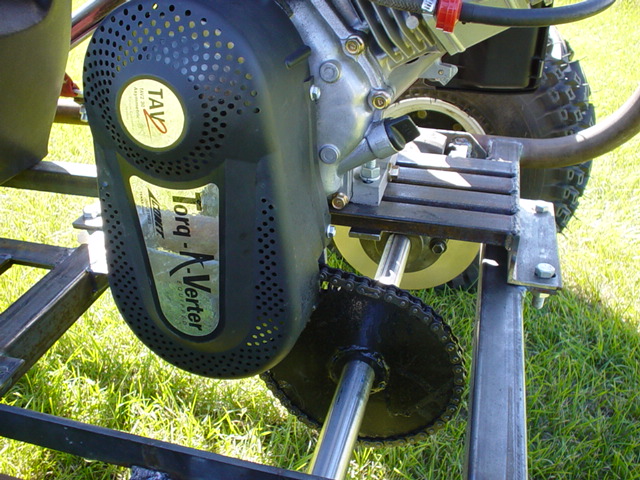

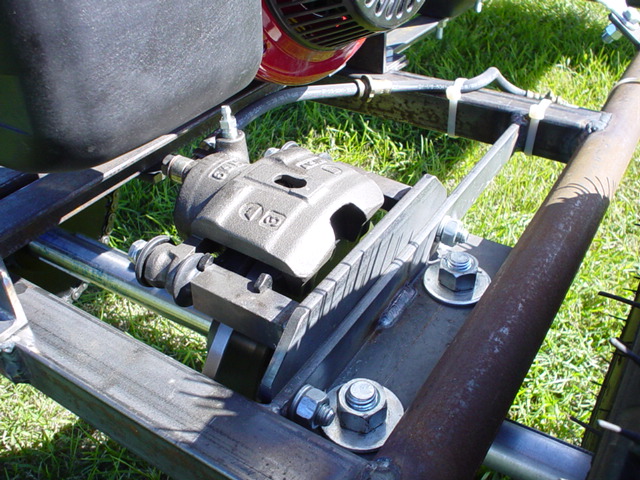

| Main design features include: - fits into the box of an 8'0" long standard pick-up truck with the tailgate closed - weighs approx 250 lbs - automatic transmission via Comet Torque Converter - 4 stroke Brigg's 9hp Vanguard Engine (26hp max) - ATV tires & rims - Off-road driving lights & 12v utility battery - 3 spoke chrome Grant racing steering wheel - Billet aluminum rack & pinion - Polyurethane bucket racing seat w/ padded cover - Certified 4 point "Y" racing harness - Hydraulic rear single disc brake - Solid rear axle w/ dual drive rear wheels - 3D engineered lightweight tubular steel chassis - Greasable pillow block bearings - Laser cut floor mounted Foot Pedal Boxes - Precision cast polyurethane bushings |

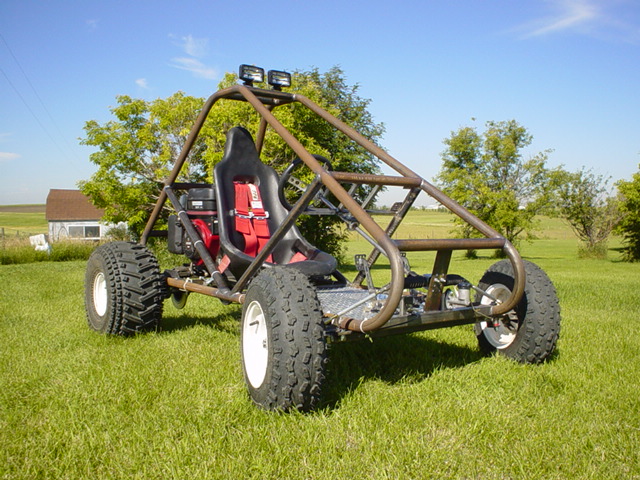

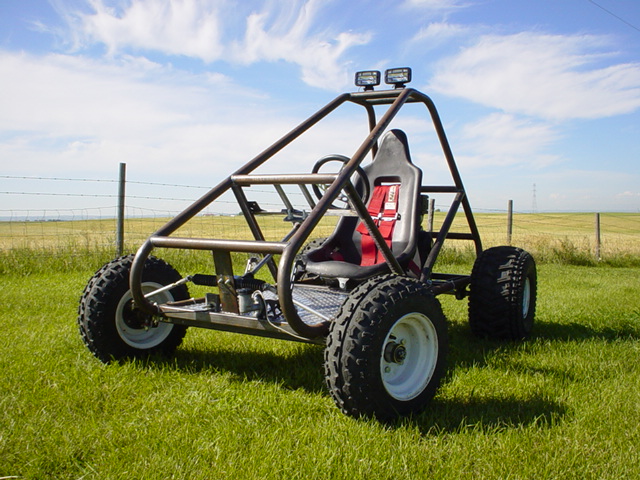

| Engineering: This entire vehicle was conceived, engineered & drafted using state-of-the-art 3 dimensional computer aided design (3D CAD). The development of the 3D computer model underwent several design transformations until an optimal balance between materials, style & function was attained. The result is the rather stylish VelociRaptor pictured. High quality processes used in construction: - Laser cutting with 0.004" tolerance - TRUMF break bending - Professional pipe/tube cold rolled bending - Polyurethane cast & mold injection - TIG welding - Shaft machining |
 |
 |
 |
 |
 |
 |
 |

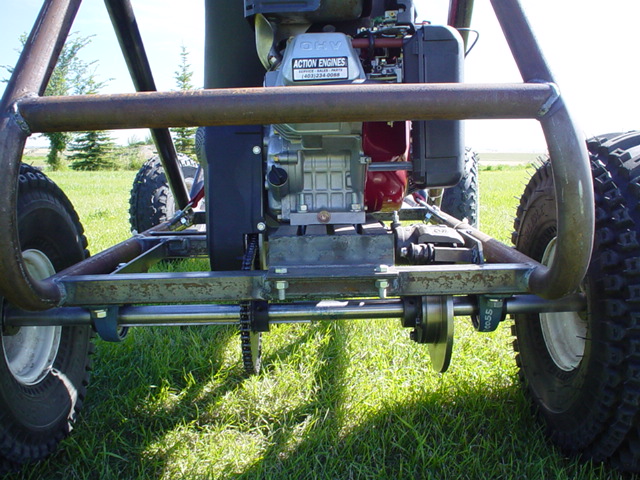

| This vehicle is powered by: |

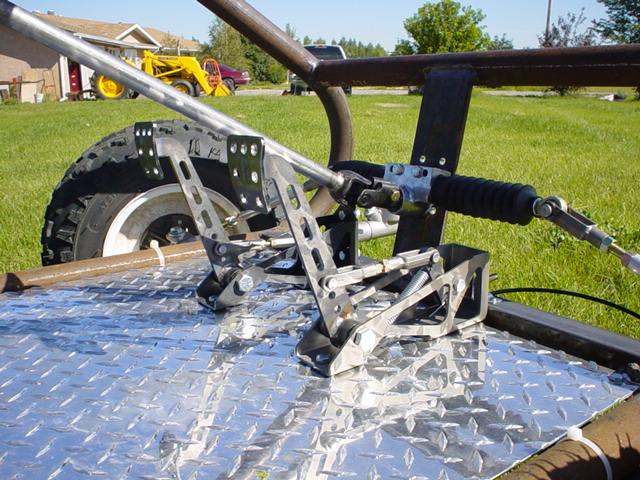

| Now featuring Badland Buggy's all new foot pedal boxes click here for more information |
 |
| PLANS What's included in the plans? VelociRaptor 3D construction plan set contains 64 pages of detailed 2D & 3D CAD drawings with US & Canadian parts sources, metric & imperial dimensions, easy to source American Steel, complete details on how to fully construct the entire space frame chassis, front beam axle drawings, rear axle details, seat installation, hydraulic brake installation, steering column construction, dash cutouts, floor plate detail, ATV tire & rim sizes, engine recommendations, torque converter details, more, more, more! Plans now include drawings to build your own pair of Pick-up Truck Loading Ramps - FREE! This plan set is divided into "modules" for easy construction & budgeting. Every module has a complete "shopping list" which includes every single nut & bolt, steel size & quantity, special parts, internet resources, etc... You can take each module to your shop for easy reading & "fold-flat" layouts so you don't keep losing your page. Every module contains a 3D assembly showing you in great detail how each sub-assembly fits visually. No guessing. Order now! |
