MEGALODON Race Buggy Plans

SKU: Buggy1007. Category: .

$79.99 $71.99

Build this top of the line buggy at home!

Product Description

[ VIEW VIDEOS ]

Fabrication Skills Rating: 4-5
Cost To Build Rating: 4-5

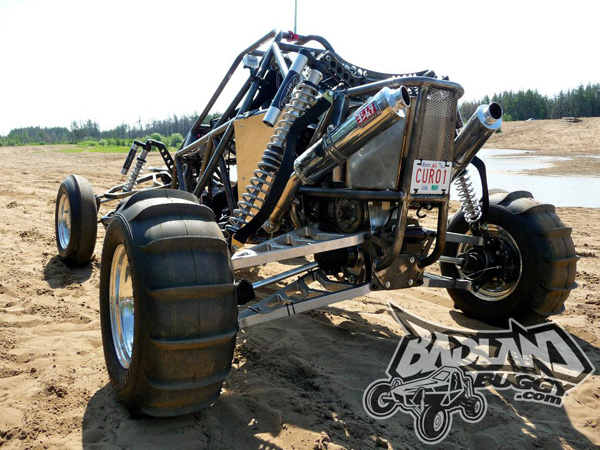

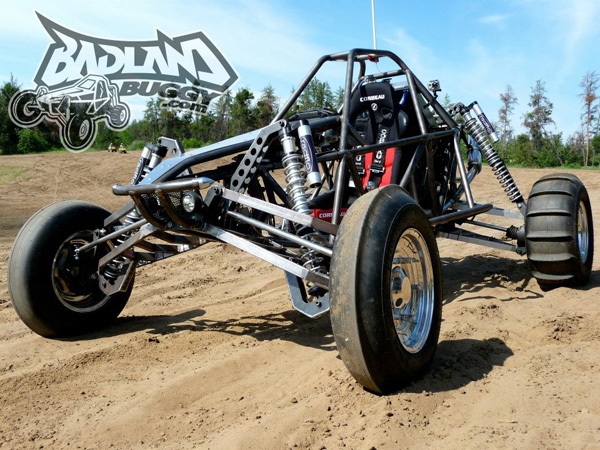

MEGALODON is our top of the line, extreme, one seat, high horsepower motorcycle engine powered off road race vehicle that you can build yourself at home.  You can literally build your own race car at home!

MEGALODON Race Vehicle Fabrication Plans includes 195 pages of highly detailed measured drawings of all of the fabrication, machining and tube bending information you will need to mechanically and structurally construct an entire race vehicle from scratch at home.

MEGALODON is the first step-by-step sand rail plans in the world to include instructions and fabrication details to install an optional Jeffco Reverse Gear Box with a differential using Porsche 930 CV Joints with chromoly axles, Race Trim billet aluminum wheel hubs and a race ready four wheel Wilwood hydraulic disc brake system.

Plans are delivered in PDF formatted for 8-1/2″ x 11″ size paper, meaning you can easily print at home. PDF’s work great on an iPad using iBooks and also work on a Kindle.  MEGALODON Sand Rail plans are organized in an easy to follow step-by-step format with all dimensions in both inches and millimeters. Drawings include “Parts Lists” with raw materials, purchased parts and fasteners.

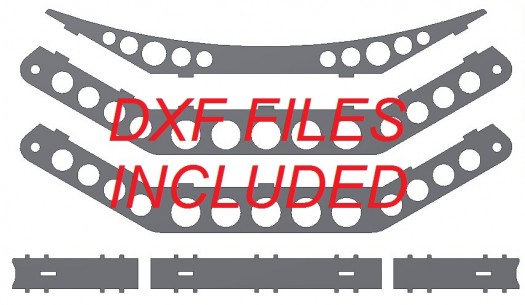

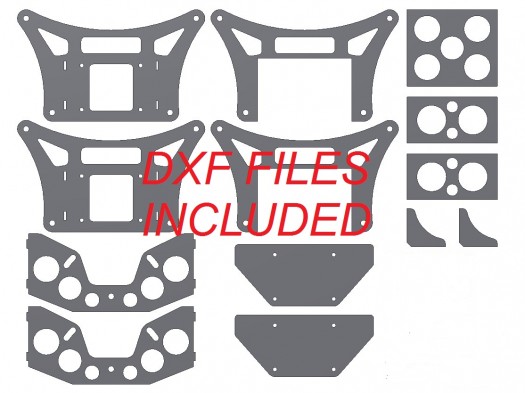

We have included forty-five (45) DXF files (generic 2D CAD files) so you can send them to a CNC laser cutting shop to have all flat steel plates CNC laser cut and CNC formed. This is a huge time and money saver for you. You save money because the CNC laser cutting shop does not have to create the CAD files, we have already done it for you. Many CNC laser cut parts are designed with self-jigging tabs and slots meaning a jig is not needed in many cases. We have also included four (4) STEP files (generic 3D CAD files) for certain parts to have them CNC machined.

We have included two versions of our all new Modular Rear Suspension System, a Pro Version and an Economy Version. The Pro Version uses a Jeffco Reverse Gear Box with a differential, Radflo coil-over shocks and billet aluminum suspension a-arms. The drive system is a chain drive to a reverse gear box with Porsche 930 CV joints, 4130 chromoly splined axles, Race Trim billet aluminum wheel hubs and Wilwood disc brakes. The Economy Version uses Fox 2.0 series air shocks, steel a-arms & a layshaft mechanism in place of the reverse gear box.

We have also included two versions for our all new Modular Front Suspension System, a Pro Version and an Economy Version. The Pro Version uses Radflo coil-over shocks and billet aluminum suspension a-arms. The Economy Version uses Fox 2.0 series air shocks and steel a-arms. The system also uses Race Trim billet aluminum wheel hubs with Wilwood disc brakes. The main housing is designed to be laser cut with self-jigging tabs and slots.

MEGALODON Fabrication Plans Package includes:

195 page Instruction Manual with measured drawings in PDF format, 45 DXF files (generic CAD) for all flat steel laser cut plates, 32 CAD renderings in JPEG format, 4 CAD models in STEP format for having certain complex parts professionally machined, Parts Lists including Steel Order List, Nuts & Bolts List, Purchased Parts List

MEGALODON Safety:

Design includes properly designed mounts for a 5 point racing harness, optional racing certified Corbeau racing seat, racing certified brake & clutch foot controls, dual front hydraulic disc brakes, dual rear hydraulic disc brakes, optional gear and reverse gear box shifters, professionally designed roll cage & chassis system which uses tubing sizes that meet or exceed typical racing specifications.

MEGALODON Handling:

Rack & pinion steering system, adjustable camber angles in front suspension/steering, 15 degrees of built-in castor angle in steering system (self-centering steering), up to 20″ of wheel travel at all corners, double a-arm suspension all around, fully adjustable & tunable Radflo coil over shocks or optional Fox 2.0 series air shocks (rebuildable & tunable dampening), lightweight tubular steel chassis design @ approx 170 lbs (ie: lightweight means improved power-to-weight ratio & improved handling/cornering). Overall vehicle will weigh approximately 1100 lbs with a 1300cc engine installed (Pro Version).

MEGALODON Ease of Fabrication:

Our 195 page MEGALODON fabrication manual include step-by-step progressive fabrication drawings with sub-assemblies, weldments, bending details, flat plate details, etc… Basically, you start at the beginning of the plans & work your way through step-by-step. Every drawing has a parts/materials list (where applicable). Chassis drawings show you how to start by making a square tube base frame then progressively build upon that starting point. All materials are readily available worldwide.

Fabrication Skills Rating:
Rating 1-2 = Beginner
Rating 2-3 = Intermediate
Rating 3-4 = Experienced
Rating 4-5 = Expert

Cost to Build Rating:
Rating 1-2 = Low $500/High $2,000+
Rating 2-3 = Low $1,000/High $3,500+
Rating 3-4 = Low $3,500/High $7,500+
Rating 4-5 = Low $7,500/High $15,000+

MEGALODON Specifications:
Wheelbase = ″ (mm)
Overall Length = 128″ (3250mm)
Overall Width = 86″ (2184mm)
Overall Height = 66″ (1676mm)
Estimated Weight = 1100 lbs (500 kg)
Ground Clearance = 15.5″ (394mm)
Suspension Travel (Front) = 20″ (508mm)
Suspension Travel (Rear) = 16″ (406mm)
Steering Type = Rack & Pinion with steering wheel disconnect
Brake System (Front) = Dual Hydraulic Disc Brakes
Brake System (Rear) = Dual Hydraulic Disc Brakes
Engine Type = 600cc+ Motorcycle Engine (1300cc recommended)
Drivetrain = Porsche 930 CV’s & 4130 chromoly drive shafts
Differential = Optional Limited Slip
Reverse = Optional Jeffco Reverse Gear Box with differential
Tires (Sand) = Front 6.75-15, Rear 11.00-15
Tires (Dirt) = Front and Rear LT235/75R15
Wheels (Sand) = Front 15×6.5, Rear 15×12, 5 bolt on 205mm
Wheels (Dirt) = 15×7, 5 bolt on 205mm

Digital Delivery of Fabrication Plans:

After you complete your purchase through our website check out, you will automatically receive an e-mail which contains both your purchase confirmation and your digital download link.  Simply click on the download link to instantly download our digital ZIP file, which you will save to your home personal computer.  After your digital ZIP file is finished downloading, you will UNZIP the downloaded file on your home computer to view and print the MEGALODON Race Vehicle Fabrication Plans at home.  We do not mail paper copies.  You are purchasing a digital file.  Your personal download link expires 48 hours after your original purchase.
